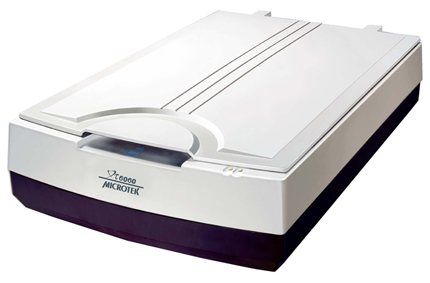

XT6060 is an A3-sized flatbed scanner. It is equipped with a CCD sensor, 600-dpi optical resolution, LED light source and the patented Auto-Scan function, which enhances non-stop scanning effectiveness and work efficiency. It is the best choice for construction, civil engineering, art and design, and publishing to digitize their works.
XT6060
XT6060
00:0000:0000:00
00:00
600 dpi optical resolution and CCD image sensor Adopted LED as its light source Patented smart auto-scan function The fastest A3 flatbed scanner in the world Tailor-made Scanning Software for Mac System
600 dpi optical resolution and CCD image sensor XT6060’s 600 dpi optical resolution meets every requirement from users about the clearness toward design drawings. Plus, a CCD image sensor performs much better than what a CIS image sensor can do in depth of field, speed and color presentation.
Adopted LED as its light source The LED light source not only meets the development trend of technology and ecology but also eliminates the warm-up time efficiently.
Patented smart auto-scan function XT6060 is equipped with Microtek’s patented Auto-Scan function, which enables the scanner to scan automatically when detecting materials placed on the top, enhancing the efficiency of continuous scanning process.
The fastest A3 flatbed scanner in the world At 200 dpi, XT6060 needs less than 3 seconds to scan a color picture in A3 size.
Tailor-made Scanning Software for Mac System Bundled with ScanPotter scanning software, exclusively designed for Mac OS. More Details about ScanPotter
Text To Speech ( TTS) Converts written texts into spoken languages, supporting English, French, German, Italian, and Spanish. You can also save the speech in AIFF format and replay it later easily.
Online Update When detecting the latest version through the Internet, ScanPotter will automatically remind users to download the update.
Sharing Saves scanned images or documents to cloud storage (Dropbox, Google Picasa, Google Drive, Yahoo Flickr) or shares them to social network (Facebook, Twitter).
NO.
Item
Details
01
Product Name
XT6060
02
Model Type
MRS-600A3LED
03
Scanner Type
Flatbed color document scanner
04
Image Sensor Type
CCD
05
Resolution
600 x 600 dpi
06
Light Source
LED
07
Scanning Area
12" x 17" (305 x 431.8 mm)
08
Scanning Speed
Color: 200dpi <3s (A3); Gray: 200dpi <3s (A3)
09
Bit Depth
8 bit / 24 bit
10
Paper Size
A3
11
Connectivity
Hi-Speed USB (USB 2.0)
12
Drivers
TWAIN
13
Smart-Touch Buttons
One scan button(Auto document detect and scan)
14
Scanable Media Types
Reflective
15
Supported File Types
TIF, BMP, PCX, PDF, DCX, JPG
16
OS Support
Windows XP/ Vista/ Windows 7/ 8 (ScanWizard DI) ; Mac OS X 10.6 or later (ScanPotter)
17
Dimensions (L x W x H)
24.7" x 14.8" x 5.1" / 627.4 x 375.9 x 129.5 mm
18
Weight
20.9 lbs (9.5 kg)
19
Environmental Compliance
WEEE, RoHS, EuP
20
Certifications
CE, FCC, BSMI, C-TICK, CCC, VCCI
21
Power Source
DC 15V, 2.5A
22
Power Consumption
38 Watts
23
System Requirements PC
CD-ROM drive (for installing software) Color display with 24-bit color output capability 512 MB RAM or more Pentium IV PC or higher with USB 2.0 port Microsoft Windows XP/ Vista/ Windows 7/ 8
24
System Requirements MAC
CD-ROM/DVD-ROM drive (for installing software) Color display with 24-bit color output capability 1 GB RAM or more (2 GB is recommended) Mac computer (Intel CPU) with built-in USB port Mac OS X 10.6 or later
25
Inbox Contents
Scanner unit Hi-Speed USB cable(USB 2.0) Power adaptor Software CD(s) User’s manual(s)
26
Software Included
Microtek ScanWizard DI Adobe Acrobat Reader ABBY Find Reader
PS : Product specifications described herein are subject to change without notice.
